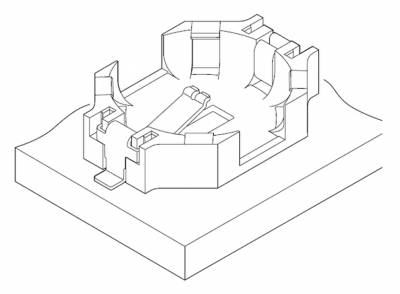

Featuring double contact points, secure locking and surface mountability, the JST PB (coin type battery) Connector / Holder not only offers great performance, but is also quick and easy to process and apply to the PCB.

The JST PB Connector is generally used in electronic devices such as; notebook and laptop computers, PDAs, tablet PCs, digital cameras, communications equipment and as a backup clock battery in many timer equipped home electronics devices. When the battery has expired, it can be easily removed from the holder and replaced.

Applications

• Desk Top Computer
• Laptop Computer
• Tablet PC
• Communication Equipment
• Home Electronic Devices

# These are a representation of some of the applications and uses of this product, and is by no means definitive.

Low Profile

• 2.0mm (614 Type) and 2.8mm (621 Type) profile height.

Easy to Use

• Push battery into the battery holder from the top.

Resistant to shock

• This is achieved by;
• Resin hooks: Integrated resin hooks provide a secure and primary hold on the applicable battery.
• Metal hooks: With 4 independent contacts offering further battery support.

Assured interface performance

• Each contact has a double point design that provides secure and assured interface performance.

Applicable batteries

• Type: 614
• Type: 621

Standards

• UL Recognized E60389

RoHS Compliant
