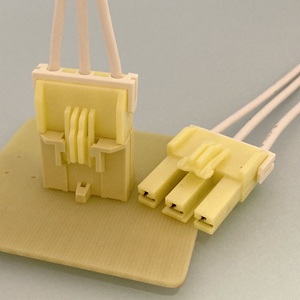

This PW Type H wire to board connector is designed for domestic household appliances that require glow test compliant material.

The connector is available in 3 circuits, with a current rating of 11Amps, 600V AC/DC and an operating temperature range of -30^oC to +105^oC.

 Glow wire compliant

         ·        Meets the GWT 850^oC standard, ensuring enhanced safety and reliability. Demonstrates improved protection and compliance in a wide range of household appliances

 Secure lock mechanism

         ·        Featuring a secure inner locking mechanism that minimises disengagement caused by tension and torsion in wire routing.

 Connector variations

          ·        PW Connector (Type A)

          ·        PW Connector (Type B)

 Application equipment

          ·        Hand, Semi-Automatic assembly devices are available. See Tooling tab for further details.

Approvals

          ·        UL: E60389

Product environment compliance statement

           ·        RoHS
