CZ/CZW CONNECTOR (CZ Family Series) 1.5mm Pitch Disconnectable IDC
  • Features
  • Specification
  • Downloads
  • Tooling
  • Samples

Based upon the 1.5mm (.059") pitch CZ connectors, the CZ family connectors have been expanded to meet the requirements of high density packaging.

The CZW connector holder allows dual-row wire-to-board connection using the CZ receptacles, while the TZ (single-row) of TZW (dual-row) allows wire-to-wire connection, also using the CZ receptacles.









CZ connector

  • Distortion resistant construction

The header is fully shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or by otherwise mismating the connectors.

  • Compact and low profile

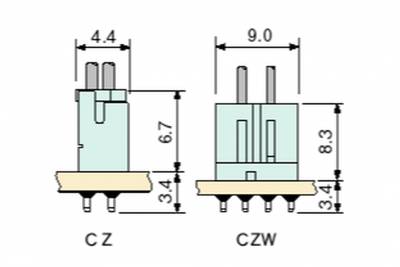

The CZ connector features a mounting height of just 6.7mm (.264") for top entry type, and 4.4mm (.173") for side entry type.

CZW connector

  • Low insertion force

Insertion force is only about 70N for 40 circuit connector.

  • Locking construction

The CZW holder has friction locks to be securely held by the CZW header.

TZ/TZW connector

  • The TZ connector is applicable to single-row connection, while the TZW connector is for dual-row connection.
  • Applicable to wide range of panel thickness
  • The design of the panel lock part does not allow the wires to be caught there before mounting on the panel.
  • RoHS Compliant



01 - Connection Type: Printed Circuit Board Connectors
02 - Product Type: Wire to Board Insulation Displacement Connectors
03 - Pitch / Style: 1.50mm
04 - Current rating: 2A AC,DC
05 - Voltage rating: 100V AC,DC
06 - Temperature range: -25 to +85 Degrees Celsius
07 - Available number of circuits: 2 to 40
13 - PCB Mount Style: Surface Mount Technology (SMT)
13 - PCB Mount Style: Through-hole Technology (THT)

Full Technical Drawings

If you require full technical drawings or any other in-depth information about this product series, please contact us using the link below.

Contact Us

Additional Information

This product series has some additional information related to it that you can download from the list below.

1) Catalogue Page 2) Handling Manual 3) 2D Drawing 4) 3D Model 5) Interconnect Combination Diagram
Tool Types

Click on a Tool Type/Category to view related tools to this series.

Applicators (For ID Connectors) Hand Press (For ID Connectors) Hand Tools (For ID Connectors)
Can't find a Tool?

If you're having trouble finding the right tool, please contact our sales team.

Contact Us
Applicators (For ID Connectors)

Please select a tool for more information.

H2A-CZ APPLICATOR
Applicator for the CZ connector series. Use in conjunction with HPD-M2A Handpress or AP-2D Pnuematic Press
H2-CZ20ED-X APPLICATOR

Applicator for CZ connector series.  Use in conjunction with HPD-M2A Handpress.
